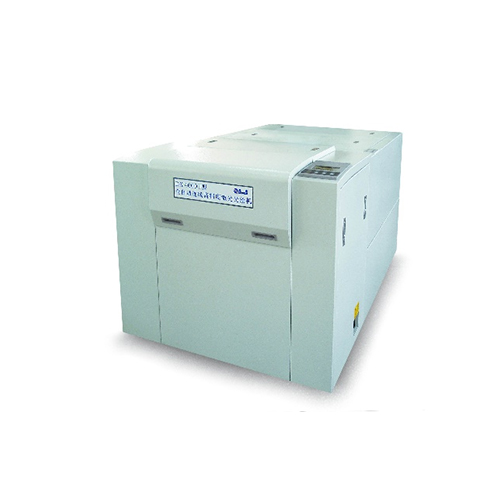

AF035 Film Plotter and Film Processor Didactic Equipment Vocational Education Equipment PCB Lab Equipment
Function: Miniaturization, low cost and fast production of high-quality film products. In addition to GERBER files (standard and extended), it can also work on BMP files or documents output by standard software such as CORELDRAW or other similar software.
Technical parameters:
* High precision, full bright room, fully automatic connection, full automatic operation,
Accurate dot restoration, high repeatability.
* The software allows decoding and encoding, film positioning,
Film and drilling positioning, positive and negative film reversal, preview and other functions.
* Exposure format: 508mm×660mm
* Scanning accuracy: 4000dpi-----12000dpi
* Repeatability: ±0.01mm
* Scanning method: external drum type broadband laser parallel scanning
* Overall dimensions length×width×height: 2500mm×1047mm×940mm
* Weight: 270kg
